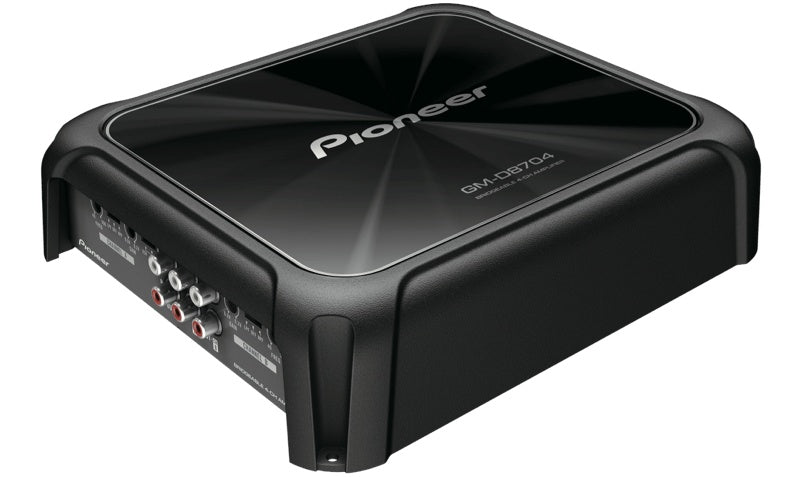

Pioneer GM-D8704 Car Amplifiers | Bowstrick.net
Pioneer GM-D8704 Car Amplifiers | Bowstrick.net
Regular price
Rs. 33,790.00
Regular price
Sale price
Rs. 33,790.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Good to know before you go
Available to orderModel / SKU: PIO-GM-D8704
Enter your address at checkout to see delivery options and charges.
Check dimensions, connections and vehicle compatibility before ordering. Review the listing for included accessories.
Delivery policy Returns policyPioneer GM-D8704 Car Amplifiers.
1,200 Watts Max. Class-D 4-Channel Bridgeable Amplifier with Wired Bass Boost Remote.
- Automatic Signal Sensing & Turn ON
Specifications
| No. of Channels | 4/3/2 |
|---|---|
| Max. Wattage (4 ohms) | 200W X 4 |
| Max. Wattage (2 ohms) | 300W X 4 |
| Max. Wattage (1 ohm) | 1200W (Total) |
| Wattage RMS (4 ohm <= 1% THD+N) | 100W x 4 (20-20kHz) |
| Wattage RMS (2 ohm <= 1% THD+N) | 150W x 4 (1kHz) |
| Wattage RMS (1 ohm <= 1% THD+N) | >125WX4 (1kHz) |
| Wattage RMS (4 ohm, Bridged) | 300W x 2 (1kHz) |
| Distortion (100Hz, 4 ohm, 10w) | < 0.05% |
| S/N Ratio (IEC-A/IHF-A N/W) | >95dB |
| Frequency response | 10-50kHz (0,-3dB) |
| Max. Input Level (RCA) | 6.5V (Low) |
| Max. Input Level (SP-Input) | 16v (High) |
| Load Impedance | 1-8 ohm |
| Amplifier Class | Class D |
| Transistor | MOSFET |
| Input level control (RCA-IN) | (200mv-6.5v) |
| Input level control (SP-IN) | (0.8v-16v) (High) |
| Frequency | 50Hz (CH-B) |
| Bass Boost | 0-18dB |

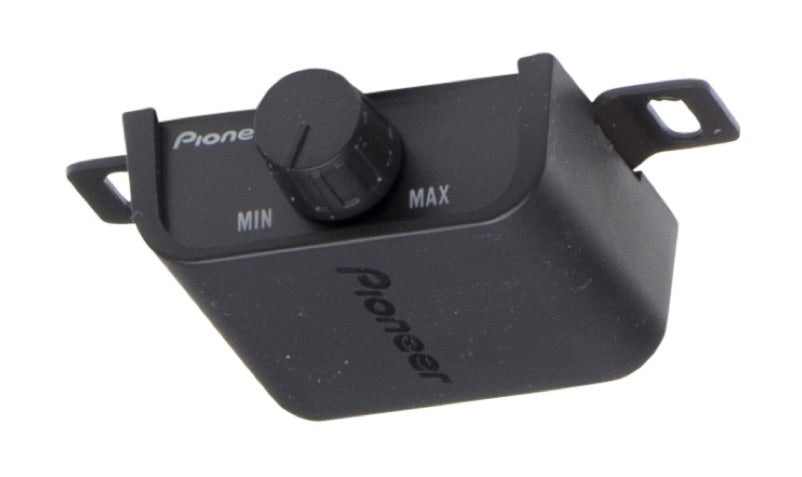

| Bass Boost Remote | Yes (CH-B) |
| Low Pass Filter | 40-500Hz, -12dB/oct |
| High Pass Filter | 40-500Hz, -12dB/oct |
| Protection Indicator | RED (Side Panel) |
| Power Indicator | BLUE (Side Panel) |
| Speaker input cable | 20cm |
| Bass Remote Cord | 5m |
| Hex Wrench | Yes |
| Mounting screws | 4 piece |
| Owner's manual | Yes |
| WARRANTY CARD | Yes |
| Chassis size (W x H x D) | 252 mm x 60 mm x 215 mm |
